NOW AVAILABLE!

RE DESIGNED AND RE PRICED, AN EXCITING RANGE OF AUTOMATIC SUMP PUMP CONTROL UNITS, SINGLE PHASE 240V AND 3 PHASE 415V.

CONSTRUCTION

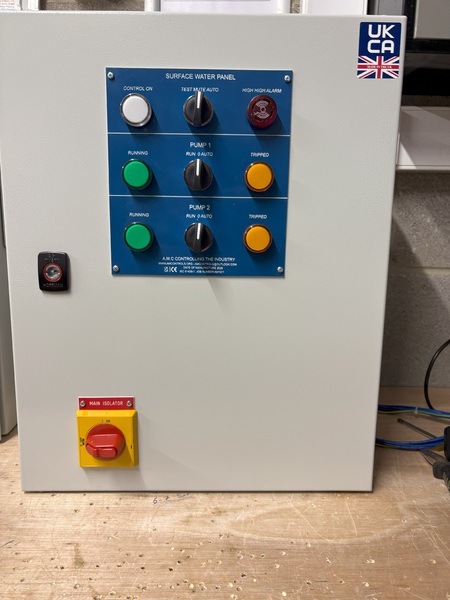

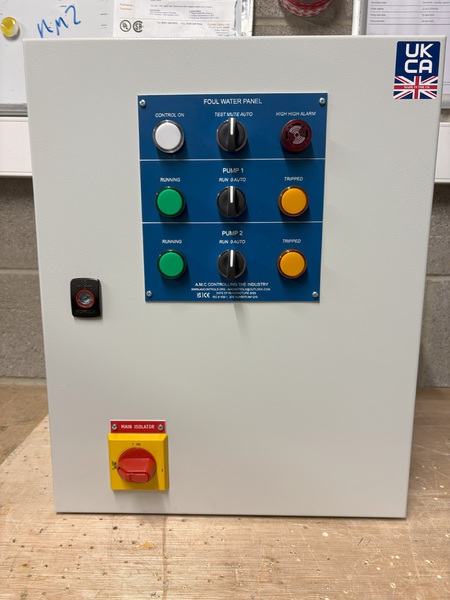

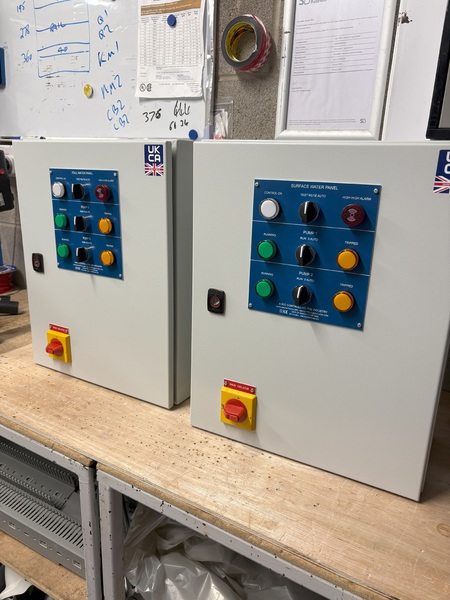

A fully automatic pump control panel, compact design in a robust polycarbonate enclosure to RAL 7035, our new design pump control units, are both reliable and affordable.

Can be supplied for single phase systems or 3 phase systems, and work on the float switch system, either 2, 3 or 4 float switches, and control 2 pump motors, alternate duty, 3 phase up to 5.5kw or 12 amp, and single phase 25 amp.

We can build units to accommodate any size motors beyond this, but the unit size and price may vary accordingly.

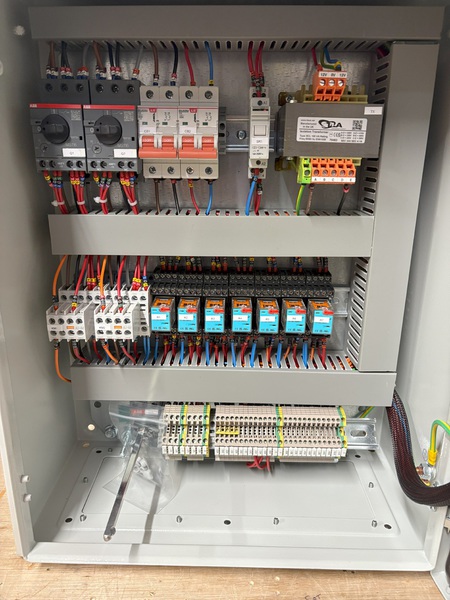

Our standard unit consists of.

* Lightweight tough and durable polycarbonate enclosure. 400x300x200mm appx.

* Door interlocked isolator.

* Thermal motor overload protection.

* Power on/running/tripped led’s

* Audio sounder for high high alarm, with test off Auto switch.

* Alternate duty for each motor.

* Hand off Auto selection for each pump motor.

* Assist option to bring on both motors.

* Low voltage controls to comply with safety regulations.



Specification may differ due to availability of materials.







Low level.

High level

Assist.

Alarm.
